    IEC 61855 2003 Hair Dryer Drying Rate Test Device With PLC Control

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1122A
    Certification : Calibration Certificate (Cost Additional)
    Payment Terms : T/T
    Supply Ability : 10 Sets / Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    IEC 61855 2003 Hair Dryer Drying Rate Test Device With PLC Control

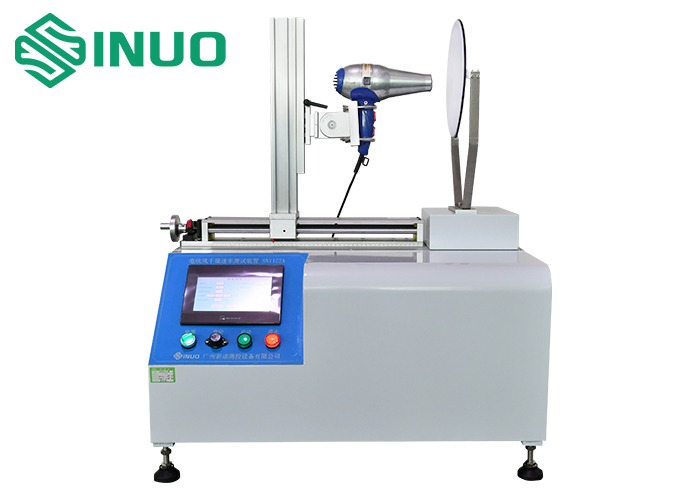

    IEC 61855: 2003 Hair Dryer Drying Rate Test Device With PLC Control


    Product Information For Hair Dryer Drying Rate Test Device:


    Conform to IEC61855:2003 standard. It is a dedicated test device for evaluating the drying ability of hair dryers under standardized conditions.
    This equipment makes the fixture according to the standard, and cooperates with the high-precision weighing sensor, which can calculate the change of the test cloth weight. The distance adjustment of the equipment adopts the precision ball screw slide table, and the adjustment position is accurate.


    Technical Parameters For Hair Dryer Drying Rate Test Device:


    Input powerAC220V 50HZ, 3kw
    Control methodMitsubishi PLC intelligent control
    Operation interface

    WEINVIEW 7-inch color man-machine interface touch screen operation

    Drive

    Precision ball screw slide table
    Sample FixtureThe three-axis adjustable mechanism of the XZ axis and the sample rotation axis is adopted. During the X-axis matching test, the distance between the sample and the test cloth can be adjusted accurately, and the Z-axis can determine the center position of the test cloth. The sample rotation axis keeps the air outlet and the test The cloth plane is parallel, and the sample holder is fixed with rubber lagging
    Weighing methodLoad cell (Changqing), accuracy 0.01g, PLC automatically collects weight
    Sample energization time0-999.9s, can be preset, default 60.0s
    Weight acquisition time0-999.9s, can be preset, 5s after the sample is powered off
    Test itemsDrying rate

    Protection

    Leakage, short circuit, overload and other safety protection
    Equipment dimensionsWDH=about 600×500×800mm
    Equipment weight

    60kg

    Configuration

    Standard load cloth: 20pcs, O-ring: 5pcs
