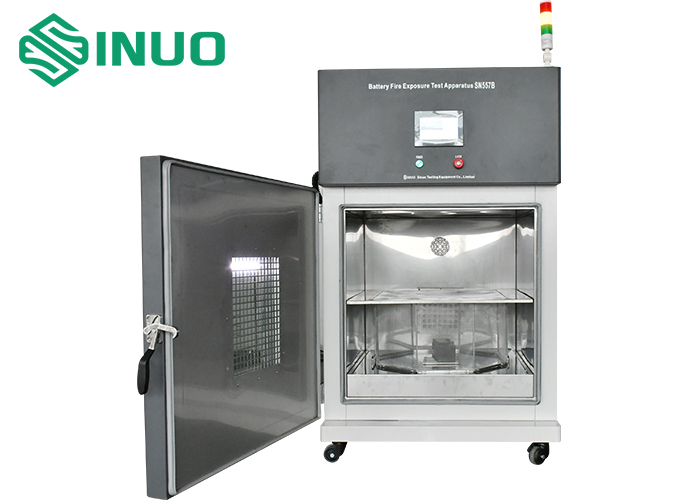

Battery Fire Exposure Test Apparatus For Lithium Ion Batteries Fire
Test UL 2054
Product Information For Battery Fire Exposure Test Apparatus:
1.1 Applied standards
This apparatus conforms to UL2054 Clause 22 FIG. 22.1, UL 1642-2009
Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.
1.2 Application
Battery Fire Exposure Test Apparatus is an essential test equipment
for battery manufacturers and quality inspection departments. This
equipment has the characteristics of convenient operation, safety
and reliability, and high precision. It is an ideal testing machine
for battery combustion and projectile testing.
1.3 Features
1.3.1 PLC and touch screen for control and operation.
1.3.2 When there is a smoke alarm, the exhaust will automatically
open, and when there is no smoke, it will be closed after a delay.
1.3.3 Unsuccessful ignition alarm and cut off steam source.
1.3.4 Built-in lighting, through external reflection, to ensure the
life and safety of lighting, etc.
1.3.5 The HD video camera and visual window can enable operator to
clearly observe the changes of the test object in the experiment.
1.3.6 With explosion-proof glass, and equipped with steel mesh,
double protection.
1.3.7 Controlled by remote controller, the maximum distance can
reach 10 meters.
1.4 Test procedures
The test battery is placed on a flat table covered with a cover
plate with a 4-inch diameter hole in the middle. Cover plate is
made of steel wire mesh with 20 holes per foot or steel wire 0.017
inch (0.43mm). Place a screen with 8 sides of 2 feet wide (610 mm)
and 1 foot high (305 mm) on each side around the specimen. The
metal mesh consists of 0.010-inch (0.25mm) metal wire at 16-18
wires per inch. The sample is placed on a metal mesh, covering the
hole in the center of the table, and then heated until it explodes
or is destroyed. The direction of the safety valve is parallel to
the asbestos cloth.
Acceptance: No part of the explosive battery penetrates the screen,
and no part or all of the battery protrudes from the screen.
Technical Parameters For Battery Fire Exposure Test Apparatus:
| 1 | Sample limits | This test equipment prohibits: Testing or storage of biological specimens Test or storage of strong electromagnetic emission source specimens Testing or storage of radioactive material samples Testing or storage of samples of highly toxic substances Test or storage of specimens during testing or storage that may
produce such substances or objects |
| 2 | Number of station | 1 station |
| 3 | Burner | Bunsen burner, pipe inner diameter 0.375 inch (9.5mm) |
| 4 | Flame Applicate Time | 99H59M59.9S±0.1s |
| 5 | Flame Height | 10~75±2mm can be adjustable |
| 6 | Testing Hole Diameter | 102mm |
| 7 | Fire Ignition Device | Auto fire ignition |
| 8 | Schematic diagram of blowtorch and electric fire device |
|
| 10 | Testing Bar Diameter | 1/4 inch (6.4mm) ×12 inch (305mm) |
| 11 | Test Cover Width | 24 inch (610mm) ×12 inch (305mm), octagonal |
| 12 | Test Cover Height | 12inch (305mm) |
| 13 | Testing Aluminum Mesh Diameter | 0.010-inch (0.25mm) 16hole×16hole |
| 14 | Octagonal stainless steel net cover | Distance between each other 2 feet (610mm), Octagonal net cover
height1 feet (305mm) |

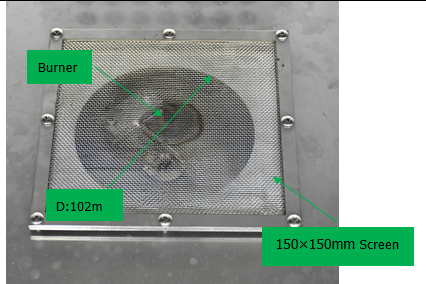

| 15 | Screen | 150×150mm (made of steel wire mesh with 20 holes per foot or steel
wire 0.017 inch /0.43mm), Max capacity:5kg |
| 16 | Standard drawing of Eight-sided cover |  |

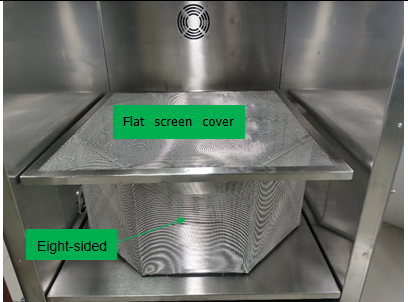

| 17 | Physical picture for Eight-sided cover |
|
| 18 | Burning Gas Requirement | High purity liquefied petroleum gas (should be prepared by
Customer) |
| 19 | Control system | PLC, and a remote controller is offered, whole test procedure fully
automatic |
| 20 | Display and Operation Method | Touch Screen |

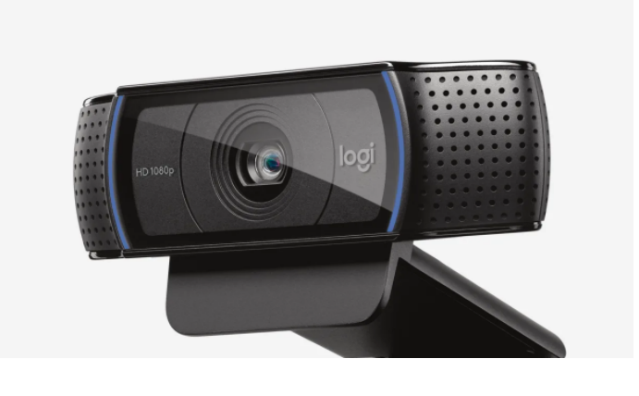

| 21 | High Speed Camera | Brand: logitech Model:C920 Pro Maximum resolution: 1080p/30fps Size: WDH=94×71×43.3mm - Compatible computer system: Windows® 7 or above
- macOS 10.10 or above
- Chrome OS™
- USB-A
The camera can clearly observe the test situation in the chamber.
(The computer and video support software should be prepared by
user) |
| 22 | Video Monitor | | Brand | MI | | Model | MJSXJ09CM | | Size | 115*78*78mm | | Resolution | 1296P(3 megapixel) | | Viewing angle | Horizontal 360° Vertical 108° | | PTZ control | APP control (Horizontal + Vertical) | | Full color night market | Low light full color | | Infrared night vision | Support | | Two-way voice | Support | | Tracking function | Support | | Install method | lay flat /upside down /side mounted | | Wifi channel | 2.4GHz | | Storage | Come with 32G microSD card |
| |
|
| 23 | Inter Size | W800XD700XH700 mm |
| 24 | Overall Dimension | W1000XD900XH1620 mm |
| 25 | Observation Window | 430 X 350mm (20mm thickness tempered explosion proof glass), with
explosion-proof net |
| 26 | Inner chamber Material | SUS304 Stainless steel |
| Outer Chamber Material | Cold rolled powder painted |
| Smoke Extractor | Φ 150mm on back side |
| Bottom | Installed with universal wheels |
| Pressure Relief Port | Test chamber with pressure relief device, when the pressure in the
chamber to set up, self-open the pressure relief hole to release
the pressure out of the chamber |
