Test procedures For Connecting And Hose Tubes Of Vacuum Cleaners
Testing Equipment:

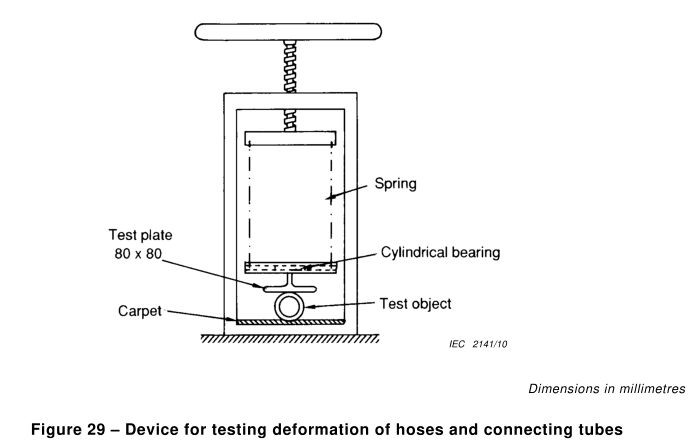

The deivce, as shown in Figure 29, cosists of a screw press with
the support covered by a piece of test carper, in accordance with
7.2.1.3.2. The force of the screw press is transmitted by a spring
to a test plate of polished steel on a cylindrical bearing, the
axis of which is perpendicular to that of the test pbject.
The force applied is indicated on a load indicator and yje reduced
cross-sectional dimension is measured by a vernier or digital
calliper.

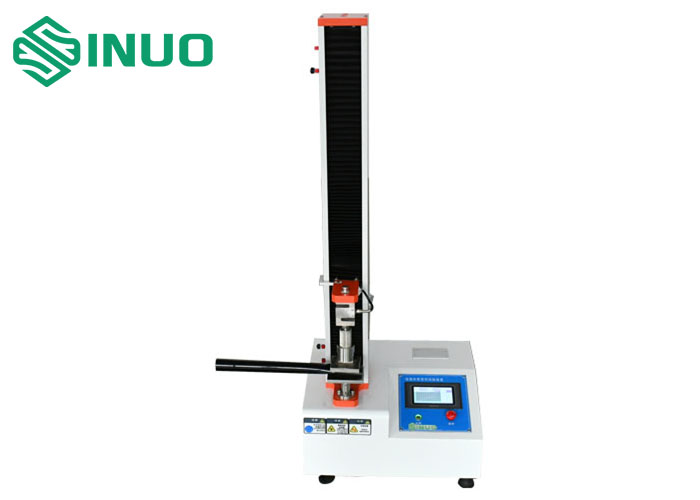

Product Structure For Connecting And Hose Tubes Of Vacuum Cleaners
Testing Equipment:
1. Using LCD digital display controller, all parameter settings are
processed in the form of dialog box, easy to operate.
2. Display real-time force value, peak value, speed, test times.
3. Humanized design, simple operation.
4. Printout: Built-in micro thermal printer.
5. Unit of strength: N, kN, kgf, gf, lbf are selectable.
6. Displacement unit: mm, cm, in are selectable
7. Switchable unit: Pa, kPa, Mpa, kgf / cm2, lbf / in2 are
selectable.
8. Protective measures: over-stroke protection, over-strength
protection, over-time protection, external limit protection and
many other protection methods.
9. High sensitivity, instantaneous determination of crushing and
automatic shutdown
10. English visual display
11. Test, rise, fall, return speed can be set by any input, and it
can be controlled accurately.
12. The test returns automatically and quickly after the test is
completed, avoiding long waiting and speeding up the test
efficiency.
13. High performance motor, low noise, small vibration and long
service life.
14. High-quality S-type alloy steel sensor, high precision, strong
resistance to external force and overload.
15. The outer box of the machine is made of A3 steel plate,
electrostatic powder spraying and plastic coating.
