IEC 62196-1 EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment

Product Information For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:

IEC62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c".

Samples and Restrictions: New energy charging vehicle plug, locking device between vehicle sockets and plug socket connector.

Test Purpose: It is used to test the insertion force and pull-out force of the new energy charging vehicle plug, the locking device between the vehicle socket and the plug and socket connector.

Test Principle: It adopts servo motor drive, PLC intelligent control, precise force value sensor to detect real-time force value, can set the peak value of force value, automatically stop when the set value is reached, and has a time curve of force value.

Structure For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:

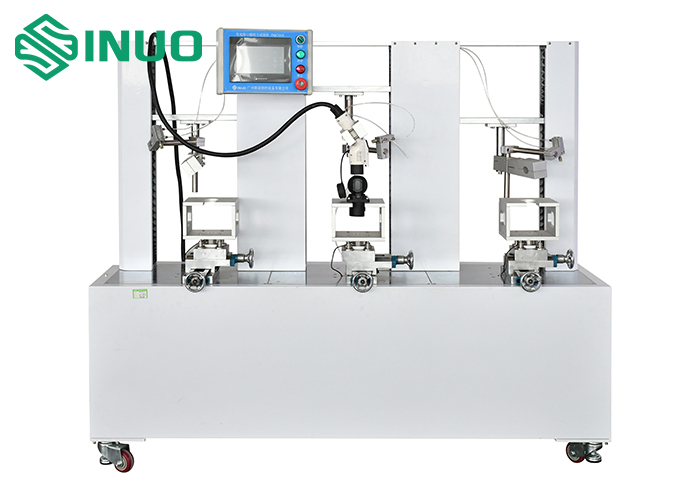

The overall 3-station structure of the equipment, each station includes an independent servo motor, a precision sliding table, a precision force sensor and a fixture, and the control is accurate.

Power supply: AC220V±10%/50Hz, power 2KW

Dimensions: about W1000*D850*H1550mm, weight: about 160kg

Technical Parameters For EV Charging Plug And Socket Withdrawal Insertion Force Test Equipment:
