    ASTM D5132 Automotive Interior Materials Flammability Test Chamber

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN776
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

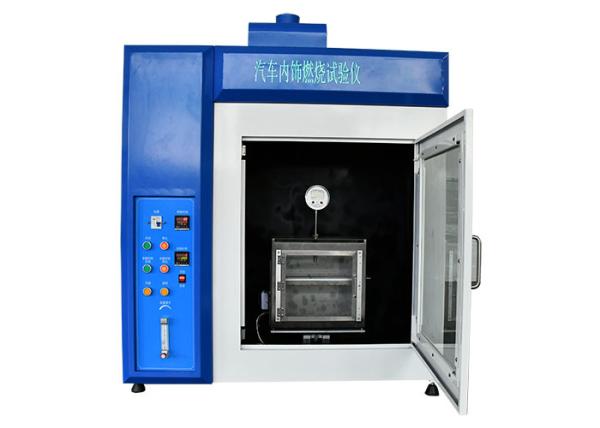

    ASTM D5132 Automotive Interior Materials Flammability Test Chamber


    ASTM D5132 Automotive Interior Materials Flammability Test Chamber


    Standard For Automotive Interior Materials Flammability Test Chamber:


    ISO3795-1989 “Road vehicles, and tractors and machinery for agriculture and forestry-Determination of burning behavior of interior materials”

    ASTM D5132 “Standard Test Method for Horizontal Burning Rate of Polymeric Materials Used in Occupant Compartments of Motor Vehicles”


    Application For Automotive Interior Materials Flammability Test Chamber:


    Applicable to the evaluation of horizontal combustion characteristics of interior materials of automobiles (cars, multi-purpose passenger cars, trucks and buses)


    Technical parameters For Automotive Interior Materials Flammability Test Chamber:


    Control & Operation Mode


    Electrical control, button operation (optional PLC control touch screen operation)

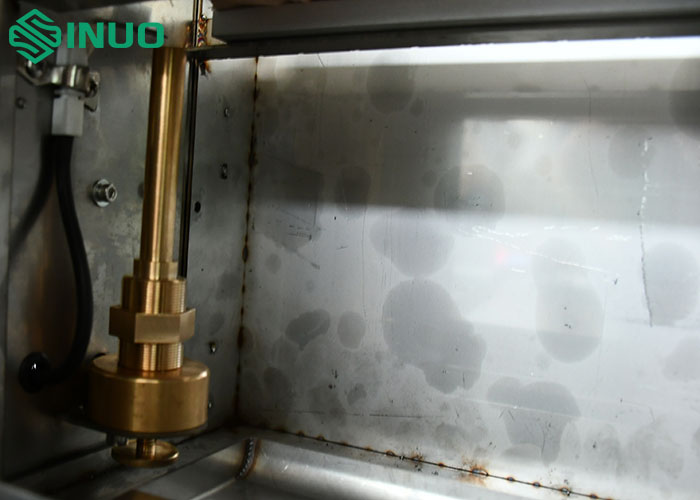

    BurnerInner diameter Φ9.5±0.3mm, cylinder length 100±10mm
    Gas Flow and Gas Source TypeLiquefied petroleum gas, natural gas and coal gas can also be used
    Combustion ChamberMade of stainless steel, with heat-resistant glass observation windows, with ventilation holes around and at the bottom, W×D×H=385mm×204mm×360mm
    Burning/self-extinguishing Time0-9999X0.1S
    Distance from The Top of The Torch to The Sample19±1mm
    Flame Height38mm, adjusted by flowmeter
    Metal CombThe length is at least 110mm, and there are 7-8 smooth round teeth in every 25mm
    Test Chamber Temperature0-150°C, displayed by a thermometer
    External DimensionsElectrically controlled fume hood and combustion chamber, black matt background, built-in lighting, with exhaust fan, overall dimensions: WDH=1150×600×1200mm, 180kg
    Structure For Automotive Interior Materials Flammability Test Chamber:
    The testing machine is composed of a control chamber, a combustion chamber body, a combustion burner, a solenoid valve (flow meter), a high-pressure igniter, a thermometer, a signal control line, the upper and lower brackets of the sample, and a fume hood. The control box and the combustion chamber are made of stainless steel, beautiful appearance, smoke and gas corrosion resistance, and the control system has a high degree of automation, with automatic ignition, automatic air supply, automatic timing, automatic end of the test and other functions.
    Use Environment For Automotive Interior Materials Flammability Test Chamber:
    Power supply: single-phase AC220V±10%, 50/60Hz
    Ambient temperature: 10℃~35℃ Relative humidity: 30%~90%
