    IEC60529-2013 IPX3/4/5/6 Spray Nozzle And Hose Nozzle Water Spray Test System

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN4415
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    IEC60529-2013 IPX3/4/5/6 Spray Nozzle And Hose Nozzle Water Spray Test System


    IEC60529-2013 IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System


    Standard For IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System:


    IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3and IPX4

    IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”


    Application For IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System:


    To verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 & IPX4 and water jets at degree IPX5 and IPX6.


    Technical Parameters For IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System:


    IPX3 & IPX4
    Parameters of Spray NozzleOuter diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass.
    Water Flow10L/min±5%, flow meter is adjustable through rotameter, electronic flowmeter is optional
    Pressure50~150Kpa, the pressure gauge measuring range: 0~0.25Mpa
    Moving ShieldMade of aluminum, can be detachable
    Water Spray DirectionsThe angle of water spraying can be adjusted
    IPX5 & IPX6
    Parameters of Hose NozzleIPX5: Ф6.3mm; IPX6: Ф12.5mm
    Delivery RateIPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, flow meter is adjustable through rotameter, electronic flowmeter is optional
    Distance from Nozzle to Enclosure Surface2.8m ((The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
    Water Jet DirectionsThe angle of water jetting can be adjusted
    General
    Control & OperationPush-button operation (PLC and touch screen intelligent control system is optional)
    Nozzle Fixed MethodSpray nozzle and hose nozzle are fixed on the support
    Pressure Gauge0~0.25MPa, can be displayed
    Test Duration0.01S~99.9 min, can be preset
    TurntableDiameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
    Water Storage TankThis test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.
    Safety ProtectionPhase sequence protection, leakage protection, water shortage protection, abnormal protection.
    Structure For IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System:

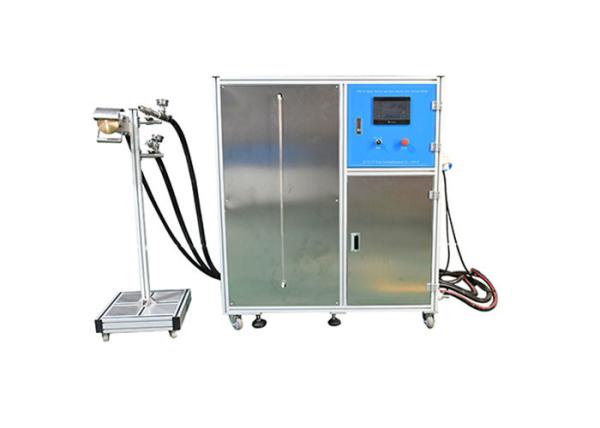

    The test equipment consists of a hand-held spray nozzle, a hose nozzle, a support, water storage tank an electrical control cabinet and a turntable. The nozzles are fixed on the support, the sample is placed on the turntable, the turntable has a rotation speed of 1r/min and its rotation is driven by motor, to make the enclosure of the specimen to be splashed in all directions or sprayed from all practicable directions. The water storage tank and electrical control part are interaged. This whole system adopts open type structure.
    Use Environment For IPX3/4/5/6 Spray Nozzle and Hose Nozzle Water Spray Test System:

    Power supply: AC380V±5%/50Hz, 5KVA, or match client’s local power supply requirements.

    Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.

    Water source: clean water or tap water without impurities.
