    IEC 61851-1 2017 Pendulum Impact Test Apparatus For EV Charging Interface


    IEC 61851-1:2017 Pendulum Impact Test Apparatus for EV Charging Interface


    Product Information For Pendulum Impact Test Apparatus:


    Comply with standard EN IEC 61851-1-2019, 12.11 /IEC 61851-1-2017 clause 12.11, IEC60068-2-75:1997, IEC62262:2002, etc. For the mechanical strength test of electric vehicle charging piles for charging vehicles.


    Test principle: According to the test Eha: the pendulum, the impact element is freely released at a certain height through a 1-meter pendulum tube, hits the sample at the lowest point in the vertical direction, and through the transformation of gravitational potential energy into kinetic energy, the purpose of impact testing on the sample is achieved.

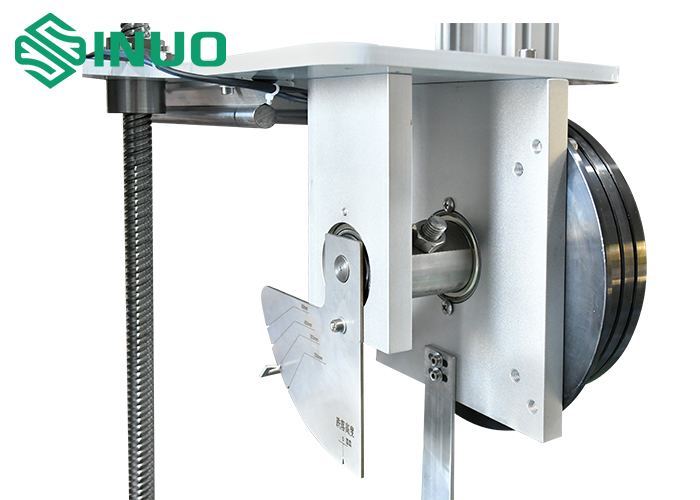

    Structure and features: It adopts a trolley structure, the mounting bracket can be adjusted up and down, and the impact angle can be adjusted to match the height requirements of charging piles of different sizes and different impact points of charging piles.


    Technical Parameters For Pendulum Impact Test Apparatus:


    Operation methodElectric lifting, electromagnet release
    Impact energy20J (2,5,10,50J energy can be customized)
    Impact element equivalent mass5Kg±1%
    Swing pipeA steel pipe with a length of 1000 mm, an outer diameter of 15.9 mm, and a wall thickness of 1.5 mm
    Sample impact height positionElectric adjustable up and down, stroke 200-1200mm, height can be customized

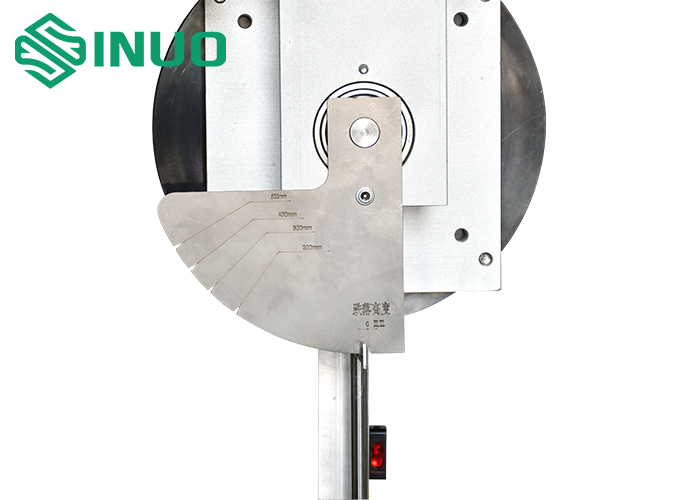

    Height of drop0-500mm, scale display
    Impact element fixation and releasePin type electromagnet fixation and release
    Base plateThicken load-bearing steel base plate
    Way of movingWith support and roller feet, it can be moved to the position of the impact point of the sample
    Optional featuresAnti-secondary impact function
    Attached tableReferences for impact energy and impact element selection

    Attached table: Table 1 Impact component characteristics


    Energy /J

    ≤1

    ±10%

    2

    ±5%

    5

    ±5%

    10

    ±5%

    20

    ±5%

    50

    ±5%

    Equivalent mass ± 2% kg0.25(0.2)0.51.75510
    MaterialNylonSteel
    R/mm102525505050
    D/mm18.5(20)356080100125
    F/mm6.2(10)710202025
    R/mm--6-1017
    L/mmDetermined according to equivalent mass adjustment, see Appendix A

    Table 2 Drop height


    Energy /J0.140.2(0.3)0.35(0.4)0.50.7125102050
    Equivalent mass /kg0.25(0.2)0.25(0.2)0.25(0.2)(0.2)0.250.250.250.51.75510
    Drop height ±1%mm56(100)80(150)140(200)(250)200280400400300200400500
    Note 1. See Note 3.2.2; Note 2. The energy unit joule (J) in this part is derived from the standard gravitational acceleration (g), and the value of g is rounded to 10m/s².

    Table 3 Correspondence between IK codes and their corresponding collision energies


    IK codesIK00IK01IK02IK03IK04IK05IK06IK07IK08IK09IK10
    Collision energy /Ja0.140.20.350.50.71251020
    Note 1. If higher collision energy is required, the recommended value is 50J. Note 2. Some national standards use one digit to represent the specified collision energy. In order to avoid confusion with it, the characteristic number is represented by two digits.
    According to this standard, it is unprotected
