    IEC60529 2013 IPX7 Immersion Test Chamber With Electric Lifting Control Cabinet


    IEC60529: 2013 IPX7 Immersion Test Chamber With Electric Lifting Control Cabinet


    Product Overview For IPX7 Immersion Test Chamber:

    The IPX7 immersion test chamber is designed and manufactured in accordance with the requirements of IEC 60529:2013. Used for testing the IPX7 waterproof level of electrical and electronic products.

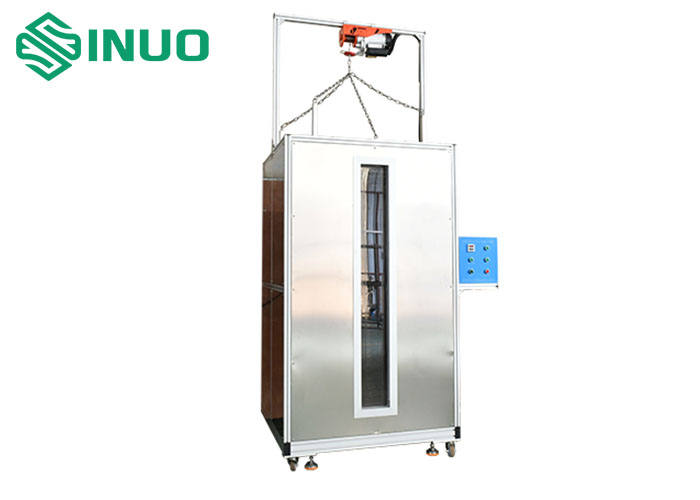

    The complete set of IPX7 immersion test chamber is composed of water tank, electric lifting basket and control cabinet.

    Technical parameters For IPX7 Immersion Test Chamber:

    Chamber external sizeApproximately W 1080* D 1080*H 2300mm (including casters)
    Chamber inner sizeLength 1000* W 1000* H1800mm
    Max. test water depth1.8m
    Observation windowTempered glass (thickness: 12mm)
    Observation window width200mm
    Water level adjustment methodWater inlet / drain valve, manual adjustment
    Water level displayScale (accuracy 1mm)
    External chamber materialStainless steel plates + Aluminum profile frame
    Inner chamber material2.0mm thickness stainless steel
    Electric lifting basketMade of stainless steel, controlled by electric hoist
    Control methodButtons (non-PLC)
    Test time0.01 second-99.99hours can be preset
    Immersion depth requirements

    The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water
    The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water

    Test contentIPX7
    Power supplyAC 220V,50Hz, 1KW
    Common Troubleshooting For IPX7 Immersion Test Chamber:
    No.:Failure phenomenonThe cause of the failureApproach
    1Equipment is powered on, but timer does not show any valueExternal power supply failsReconnect power supply
    Power control breaker is offTurn on the breaker in the control box
    2No action when the start button is pressedThe test time is not clearedPress “Stop/Clear” to clear time
