Plug Gripping Test Apparatus For VDE Type Plugs Sockets IEC 60884-1: 2022

Product Information For Plug Gripping Test Apparatus:

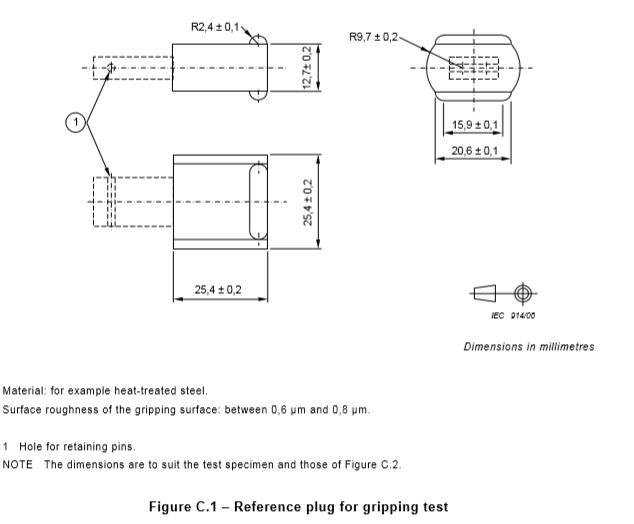

This device is used to verify the plug clamping test. It conforms to IEC 60884-1: 2022 Annex C alternative gripping tests figure C.2, the reference plug as per C.1 also below shown:

Technical Parameters For Plug Gripping Test Apparatus:

Operation Steps For Plug Gripping Test Apparatus:

1. Prepare the test plug, clamp the test plug with the sample fixture, the plug surface is flush with the plate’s bottom surface, the test plug pins go through the hole of the plate, the rod goes through all the holes of the plug pins,then hook the digital force gauge on the top ring, pull the force gauge and record the force value three times.

2. Clamp the reference plug with the sample fixture, the reference plug surface is flush with the plate’s bottom surface, then the rod goes through the hole of the reference plug, hook the digital force gauge on the top ring, pull the force gauge and record the force value three times.

3. Compare the force values of step 1 with the force values of step 2 as per IEC 60884-1: 2022 Annex C .
