IPX9K High Pressure And Temperature Water Jetting Test System IEC
60529 IP Code Test
Product Information:
Standard:
1. DIN 40050-9:1993 IP code for enclosure protection level
2. ISO 20653:2013 Road vehicles - Protection classes (IP codes) -
Protection of electrical equipment against outside objects, water
and contact
3. GB/T 30038-2013 Road vehicles Protection levels of electrical
and electronic equipment (IP code)
4. IEC 60529: 2013 Protection Classification Level (IP) Code for
Electrical Enclosures
5. GB 4208-2017 Shell protection level
Function:
The main purpose of this equipment is to conduct IPX9K waterproof
testing on the protection of automobile electrical components,
lamps, and electronic and electrical product casings. It is a
waterproof testing equipment designed to simulate the natural
environment or artificial high-pressure car washing. The main
components of the equipment should include: high-pressure and
high-temperature plunger water pump, three-phase asynchronous
motor, and the inlet and outlet pipes of the water pump should be

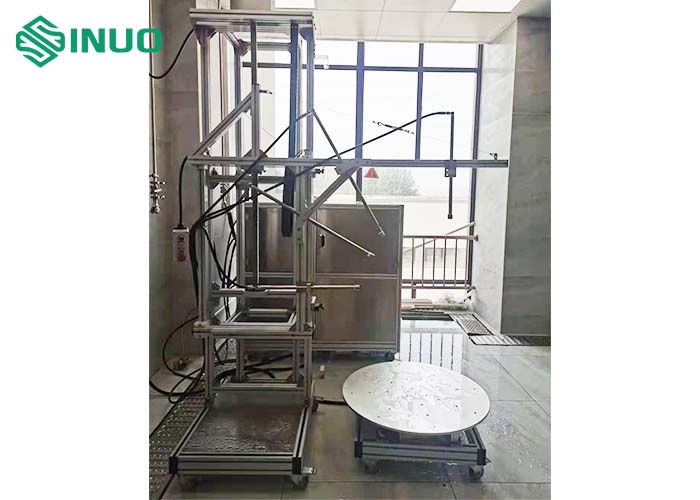

connected with high-pressure hoses. The equipment mainly consists
of a control cabinet, water supply system, high-pressure nozzle,
nozzle electric adjustment bracket, and sample turntable.
Technical parameters:
1. The test meets the needs of small shell (samples with a maximum
size not exceeding 250 mm) and large shell (samples with a maximum
size greater than or equal to 250 mm). The maximum sample size
tested is: Ø1150mmX750mm
2. Test water temperature: 80±5 ℃ controllable
3. Nozzle specifications: customized according to standard
graphics, meeting standard IPX9K requirements
4. Nozzle angle: small shell (0°, 30°, 60°, 90°), large shell
vertical surface 90°
5. Water spray pressure: 8MPa-10MPa (adjustable)
6. Water spray flow: 14L/min-16L/min (adjustable)
7. Water spray distance: 100~250mm adjustable
8. Test product power-on work: provide sample power interface
9. Water pump: High-pressure and high-temperature water pump
imported from Italy. The water-type shell uses 4 high-temperature
and high-pressure piston valves to control the work of each nozzle
10. Used for large product nozzle brackets: the bottom can be
electrically moved forward and backward, the up and down height can
be electrically moved, and the 90-degree downward nozzle can be
electrically moved left and right.
11. Sensor: electronic pressure sensor outputs pressure value,
turbine flow meter outputs flow value
12. Control: Automatic control of time, pressure, and flow. It can
control the working time, flow, and pressure of each nozzle. The
speed of the booster pump can be controlled by changing the
frequency of the frequency converter to achieve the set flow and
pressure. All data is converted through intelligent instruments
display on the control panel
13. Display: 7-inch Weinview color touch screen
14. Interface language: English, touch screen input
15. Operation mode: 0°, 30°, 60°, 90° cycle operation for small
products, 90° vertical movement of the nozzle for large products,
or a combination of the two modes
16. Display function: dynamically refresh sampling data and setting
parameters in real time. Can display pressure, flow, temperature,
test time, etc.
17. Protection functions: leakage protection, overload protection,
short circuit protection, personnel operation safety protection
18. Water tank capacity: ≥ 200L
19. Turntable: Bottom diameter 800mm, upper turntable 350 mm,
bottom turntable load-bearing 150KG, upper turntable load-bearing
25KG, poles are removable, small products can be placed on the
upper turntable, large products can be placed directly on the lower
turntable after removing the upper turntable, rotation speed:
5r/min± 1r/min
20. Equipment power supply: AC380V, 50Hz, 30KW.
