IEC60068-2-1 Rapid Temperature Change Test Chamber For Testing Of Raw Materials

Product information:

This rapid temperature change test chamber is required by IEC 62196-1: 2022 clause 26.7.2.

It is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the reliability of storage, transportation and use of products under high and low temperature rapid alternating humid heat environment.

Manufactured in accordance with standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Structure:

This equipment adopts a closed chamber structure with the following features:

1. Energy saving and consumption reduction: The gas-liquid bypass mode is used to adjust the cooling capacity to achieve constant temperature and humidity.

2. Easy to operate: using programmable temperature and humidity controller (7-inch 16-bit true color touch screen), experimental data recording and processing are flexible.

3. High reliability: key components are imported components to ensure longevity and reliability; efficient oil separators ensure compressor life.

Technical parameters:

Control & Operation		PLC and touch screen intelligent control system
Chamber Size		1000L: inner size: WDH=1000×1000×1000mm, outer size: WDH= 1200 ×2015×2035 mm (excluding protruding parts of the machine)
Temperature Range		B: -40～150℃;
Linear Speed		3℃/min
Temperature Deviation		≦±2.0℃
Temperature Fluctuation		±0.5℃
Temperature Uniformity		±2℃
Heating and Cooling Rate		Heating rate: from -30℃ to +100℃, linear speed 3℃/min (non-load) Cooling rate: from +100℃ to -30℃, linear speed 3℃/min (non-load) (Note: The temperature heating and cooling rate is measured according to the relevant regulations of the IEC60068-3 standard, and the sensor is at the air outlet position)
Humidity Range		20%〜98%RH
Humidity Deviation		±3.0％RH (＞75％RH); ±5.0％RH (≤75％RH)
Humidity Uniformity		±3.0％RH (non-load)
Humidity Fluctuation		±2.0％RH

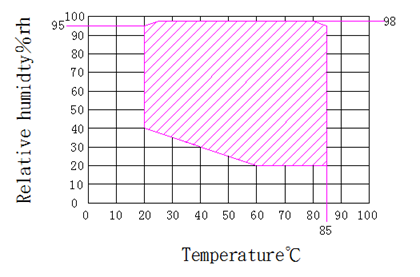

Temperature and Humidity Range Icon
System Main Composition
Chamber Body	The inner chamber is made of high-quality carbon steel plate, the surface is treated with electrostatic color spraying
	The inner chamber is made of 304# brushed stainless steel plate, rounded shape, smooth, easy for clean

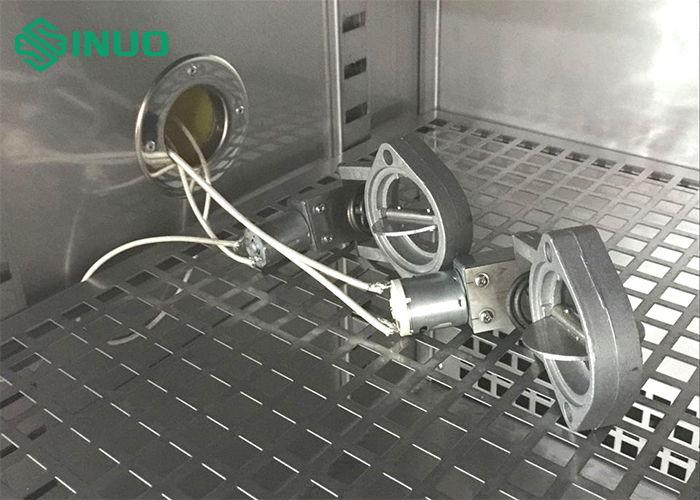

	Lead hole: the inner and outer chamber are equipped with a threading hole with a rubber stopper
	Insulation material: polyurethane foam
	Observation window: double-layer explosion-proof tempered glass door
	Shelves: Made of 304 stainless steel, detachable shelves
Heating System	Heating method: electric heating
	High quality nickel-chromium wire electric heater, contactless control (SSR)
Humidification System	Humidification method: external humidification structure
Cooling System	German Bock semi-tight compressor or German BITZER semi-compact compressor
	Non-fluorine environmentally friendly refrigerant R404A R23, in line with environmental regulations, safe and non-toxic
	Shell and tube condenser (water cooled)
	High-performance fin type automatic load capacity adjustment, long-term use of low temperature and high humidity conditions without frosting.
Control System	Touch screen: programmable temperature and humidity controller (7 inch 16-bit true color touch screen)
	Temperature control: PID self-tuning, using Class A PT100 platinum resistance sensor
	Function: fixed value test and program test Fixed value test: When the test environment requires only a single temperature and humidity, selecting this mode to set the required temperature, humidity and running time. Program test: When the test environment requires multiple temperatures and humidity, select this mode to set the temperature, humidity and running time of each program. User can set the program running sequence. The program group is up to 100 groups.
Data Storage	With temperature and humidity curve interface, with standard R232 interface or U disk communication interface, the data can be downloaded, and the data changes and processes can be recorded.
Safety Protection	Power-off memory function, phase sequence protection, leakage protection, over-temperature protection, compressor overload protection, water shortage alarm, abnormal protection
Safety Protection Device	Heater air-burning protection switch, heater over current circuit breaker, circulating fan over current overload protection
	Compressor high voltage protection switch, compressor overheat protection switch, compressor over current protection switch
	Under-reverse phase circuit breaker, no-fuse switch, zero-crossing gate fluid power controller
Alarm Indication	When the above protection occurs, the equipment stops running, an audible and visual alarm is issued, and the fault location is displayed on the meter.
