Brand Name : | Sinuo |
Model Number : | SN2401 |
Certification : | Calibration Certificate (Cost Additional) |
Price : | Customized |
Payment Terms : | T/T |
Supply Ability : | 100 sets per month |
Delivery Time : | 10 Days |

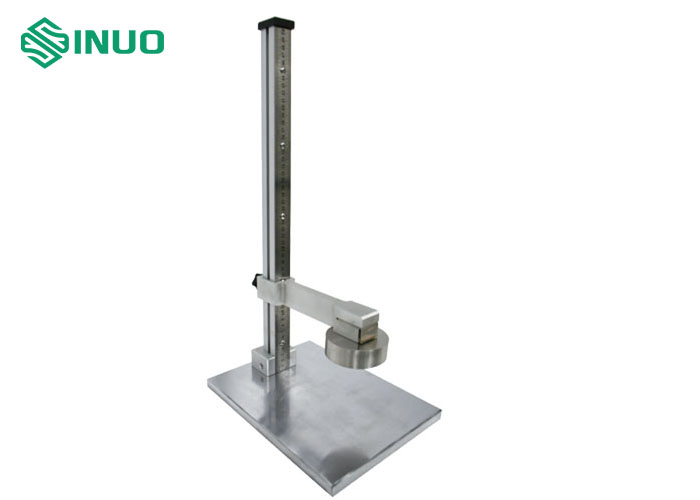

Impact Strength Test Apparatus With 500mm Drop Height 1KG EN 71-1-1998 Clause 8.7
Product information:
The drop tester conforms to EN 71-1-1988 clause 4.14, EN 71-1-1998 clause 8.7. Adopts impact strength test methods to simulate a child playing or abusing toys or other items to determine the possibility of injury.
Technical Parameters:
Horizontal steel surface size | 215 (length) x280 (width) |
Adjustable drop height | 0-500mm |
Impact metallic mass | 1kg ± 0.02kg weight, diameter:80mm ± 2mm |
Impact distributed area | Distributed over an area of 50cm² |
Frame material | Steel with chrome-plated surface |

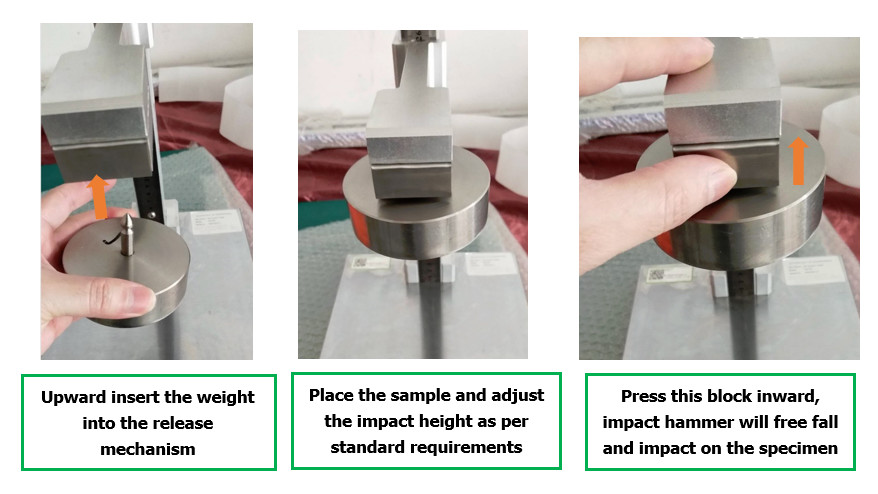

Operation steps:
Please refer to the relevant standards.
Take EN 71-1-1988 clause 4.14 as an example:
Place the toy on a plane, horizontal steel surface and drop a metallic mass of 1 kg, distributed over an area of 50 cm², through a distance of 100mm on to the toy.
Examine whether the casing has broken.
![]() |
