    IEC 60601-1 2012 ME Stability Test Bench For Test Medical Electrical Equipment

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNM02
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : T/T
    Supply Ability : 5 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60601-1 2012 ME Stability Test Bench For Test Medical Electrical Equipment


    IEC 60601-1: 2012 ME Stability Test Bench For Test Medical Electrical Equipment



    Product Information:

    1. Standard: conform to IEC60601-1:2012.

    2. Samples and restrictions: Medical electrical equipment.

    3. Application: used to verify whether ME equipment will be unbalanced on an inclined floor of 5° or 10°, and to assess its stability performance.

    4. Test principle: The tilt angle is preset through the touch screen. After starting, the servo motor automatically moves to achieve different tilt angles. After reaching the angle, place the test sample on the table. The sample should not be unbalanced.


    Technical Specifications:

    Equipment dimensionsAbout: 1900×1100×420 (mm) W×D×H
    equipment weight300kg
    Usage environmentPower supply: AC220V±10%/50-60Hz, power 1.0KW
    StationSingle station
    Electrical control methodPLC intelligent integrated control, color human-machine touch interface operation
    Table size1200*1000mm can be customized
    Equipment structure and characteristics

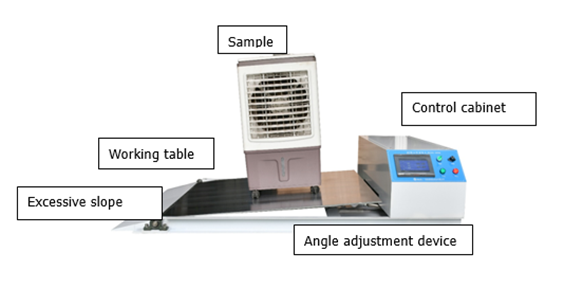

    The equipment consists of a control cabinet, a work surface, and its angle adjustment device. The structure diagram is as follows:


    Drive modeServo motor + precision reducer drive
    Specimen clamping methodMechanical clamping
    Countertop materialHigh-quality stainless steel plate
    Angle adjustment range5-15°, electrically step-less adjustable
    Carrying capacity200kg
    Safety protectionOverload protection, leakage protection
