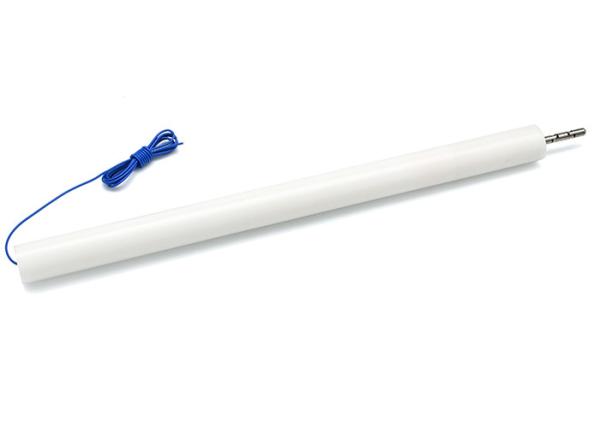

    Test Probe 19 Ф5.6mm Small Finger Probe For Simulate Children Finger IEC 61032 Figure 12


    Test Probe 19 Ф5.6mm Small Finger Probe For Simulate Children Finger IEC 61032 Figure 12

    Product Overview:


    This probe conforms to the standard requirements of IEC 61032 figure 13 test probe 19, IEC 60065:2014 clause 9.1.1.3, etc. This probe is intended to simulate access to hazardous parts by children of 36 months or less.



    Probe Dimension:


    NameChildren Finger Probe 19
    Hemispherical (mm)R2.8±0.05
    Finger probe diameter (mm)Ф5.6±0.1
    Finger probe length (mm)44±0.15
    Joint distance (mm)14.67
    Axes of joints diameter (mm)Ф25.9±0.3
    Axes of joints length (mm)101.6±0.3
    Handle diameter (mm)Ф25.4±0.3
    Handle length (mm)464.3±0.8
    Operation:

    Please refer to the relevant standards.

    Take IEC 60065:2014 clause 9.1.1.3 as an example:

    The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.


    For verifying whether the LIVE PARTS touched, the probe is equipped with amphenol connector, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:

    Test Probe 19 Ф5.6mm Small Finger Probe For Simulate Children Finger IEC 61032 Figure 12
