    IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SNB02C-1000
    Certification : Calibration Certificate (Cost Additional)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30 Sets Per Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

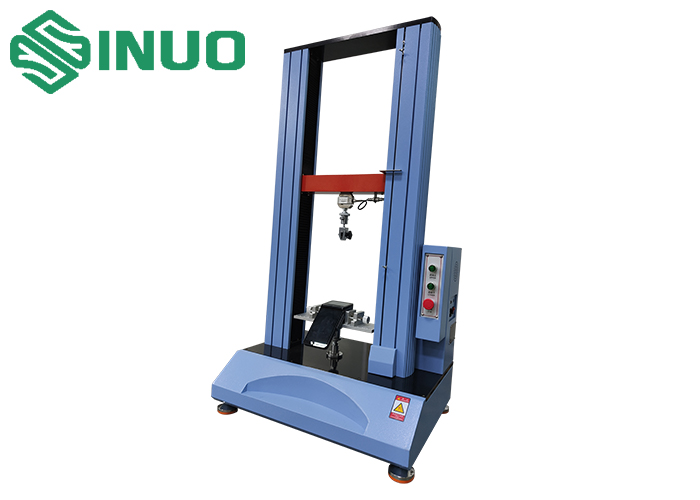

    IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals


    IEC 60947-1 Double Column Digital Display Tensile Testing Machine For Test Threadless Terminals​

    Product information:

    Specimen and limitations: screw-type terminals, threadless terminal blocks and connectors

    Test purpose: To examine whether threaded terminals and threadless terminals can withstand the mechanical stress that occurs during normal use. It is mainly used to determine whether the design and structure of thread clamping terminal blocks meet the requirements of not excessively damaging the wire when clamping the wire.

    Testing principle: This machine adopts computer control and is widely used in mechanical property testing of rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics and other non-metallic materials as well as metal wires, metal foils, metal plates and metal rods. It is suitable for pull-out test of terminal wires with special clamps. It can print a variety of data, and can make graphic output comparisons based on different data. It has high control accuracy and is easy to operate. It adopts modular design, has a complete range of accessories and is flexible to match.

    Equipment structure and features: Equipment dimensions: approximately: 800×500×1600 (mm) W×D×H, equipment weight: 150kg

    Usage environment: Power supply: AC220V±10%/50-60Hz 1kW, operating temperature 0-40℃, humidity 30%-90%

    Technical parameters:

    Maximum test force0~1000kg/10000N
    Force measurement display accuracy0.01N
    Unit switchingKg,N,Lb
    Load analysis degree1/250000
    Load accuracy±0.2%
    Displacement switchingMm, cm, in
    Displacement measurement display accuracy0.01mm
    Test itinerary800mm
    Test effective width400mm
    Speed test range50-300mm/min stepless speed adjustment
    Constant force time0-9999s, can be preset
    Drive systemUsing servo motor, Taiwan ZPT ball screw, computer software TM2101
    Safety devicesOverload emergency stop device, upper and lower stroke limiting device, automatic breakpoint shutdown function
    FixtureA set of standard tension clamps and mounting plates are produced according to customer products, with a size of 300mm*250mm
    Accessory configurationComputer + printer
    Operation methodComputer control, using Windows working platform, clear-level operation methods and detailed help documents and prompts make it the simplest and easiest-to-use software in the testing machine industry.
    CurveUsing multi-thread parallel processing technology, force-displacement, force-time, displacement-time, stress-strain and other curves are simultaneously displayed in real time during the test process. You can switch to the curve screen you want to see at will, and view user settings, etc. The industry's innovative Microsoft Word report format is simple and easy to use. As long as you know how to use Word, you can edit the beautiful reports you want.
