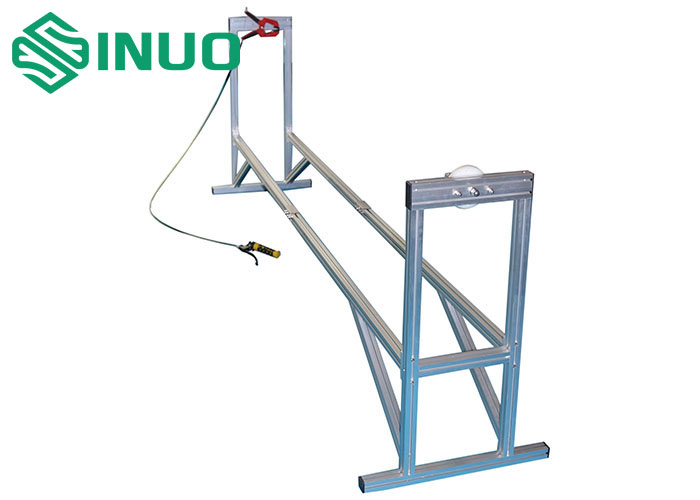

IEC 62196-1 Manual Release Plug And Vehicle Connector Drop Test Machine

Product information:

The test device complies with the requirements of IEC 62196-1Ed. 4CDV 2020 Article 26.3, Figure 19.

Used for testing the mechanical strength of interchangeable wire plugs with flexible cables and vehicle connectors.

Test principle: the free end of the cable and additional rope or other flexible means are attached to the flexible cable, the total length is 2.25m, fixed on the wall 1m high from the ground.

Hold the sample so that the cable is level, then let it fall on the concrete floor. This was done eight times; The cable is rotated 45 ° each time it is fixed.

Technical parameters:

1. The height of dropping:1000mm

2. Dropping times:8

3. Rotating angle:45°, it can be rotated in all sides.

4. Size:L*W*H 2300*500*860mm

Test procedures (Excerpt from IEC 62196-1Ed.4CDV 2020 clause 26.3):

Non-replaceable plugs and vehicle connectors are used with short lengths (approx. 200mm) Flexible Cable Shipped.
The free end of the cable is connected with the flexible cable by additional ropes or other flexible devices, the total length is 2.25m, and is fixed on the wall 1m from the ground, as shown in Figure 19.
Hold the sample so that the cable is level, then let it fall on the concrete floor. This was done eight times; The cable is rotated 45 ° each time it is fixed.
