    IEC 61851-1 Strength Impact Test Equipment For Electric Vehicle Power Supply Equipment PLC Control


    IEC 61851-1 Strength Impact Test Equipment For Electric Vehicle Power Supply Equipment With PLC Control


    Product Information:


    This test equipment is designed and manufactured in accordance with the requirements of standards such as IEC 61851-1 2017 Clause 12.11.

    The test equipment is composed of two kinds of impact test devices. Two kinds of mechanical strength test methods can be used for impact test of EVSE shell.

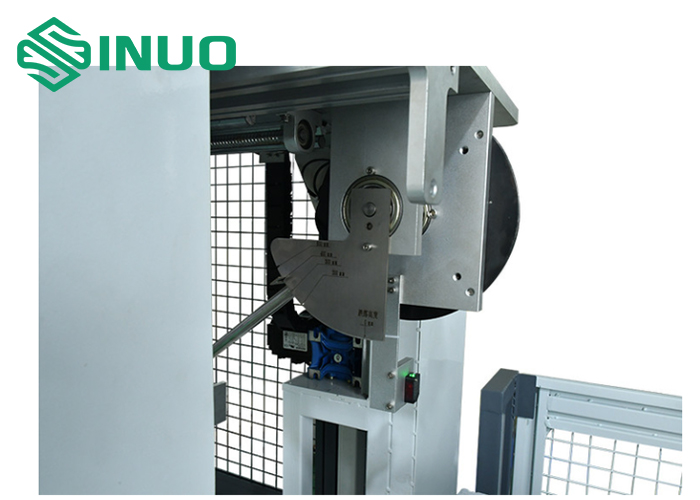

    The impact energy is formed by releasing the pendulum through the electromagnet; And has the automatic electric brake, prevents the second collision.

    The device is controlled by PLC, touch screen and remote control. The height of the click point can be adjusted by electronic control.

    The adjustment of strike height and the release of strike elements can be controlled remotely.

    The sample installation base is made of high strength steel plate and channel steel, which has the characteristics of high strength and impact resistance. The sample to be tested is fixed with manual screws.


    Technical Parameters:


    Applied standard

    IEC 61851

    Applied clause

    12.11

    Control and operation

    PLC control, 7-inch color touch screen control, remote control remote control.

    Drive mode

    Motor + reducer mechanism

    Pendulum impact

    Rated test impact force

    Standard 5J (10J, 20J, 50J optional)

    Pendulum mass accuracy

    ±1%

    Equivalent mass of impact hammer

    1.7kg (5 kg, 5 kg, 10 kg are optional)

    Impact hammer form

    Spherical impact hammer

    Pendulum striking point height adjustment range

    Customized according to the sample

    Swing arm height adjustment range

    200-500mm

    Specimen clamping adjustment range

    Customized according to the sample

    Impact point height adjustment

    Electric adjustable

    Number of hits

    0-9999 times can be preset

    Status indication

    LED indicator

    Pendulum height (energy) adjustment

    Manual adjustment

    Pendulum positioning

    Electromagnet adsorption

    Pendulum release

    Wireless remote control or touch screen operation

    Impact point height adjustment method

    Wireless remote control or touch screen operation

    Security

    360° all-round safety protection, automatic electric brake to prevent secondary impact

    Vertical impact

    Rated test impact force

    Standard 5J (10J, 20J, 50J optional)

    Installation method

    The hammer head is adsorbed by electromagnet, and the conduit is screw-in type

    Release method

    Button control, electromagnet momentary release

    Hammer release

    Remote control

    Height adjustment method

    Remote control
