    IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1005
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

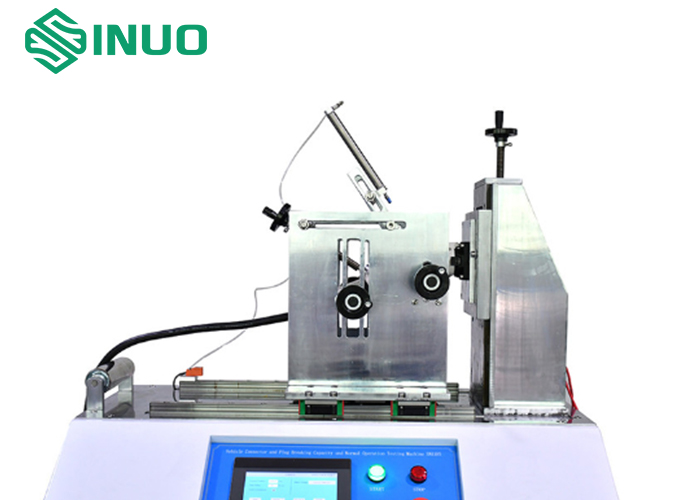

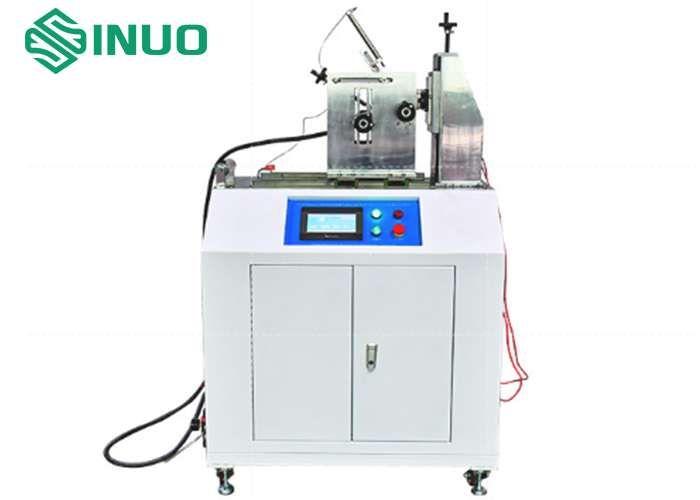

    IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen


    IEC62196-1 Electric Vehicle Socket Breaking Capacity Test Device With PLC Display Screen


    System Introduction:


    The test equipment meets the requirements of articles 22 and 23 of IEC62196-1: 2020, 20 and 21 of IEC60309-1: 2012.

    Used to verify that electrical accessories such as charging interfaces, industrial plugs, sockets and couplers can withstand mechanical, electrical and thermal stresses during normal operation without excessive wear or other harmful effects.

    Servo motor drive mechanism, so that the sample repeated plug and pull action. External loads can be used to test the fracture capacity. Boot / shutdown time, test speed, stroke, angle can be preset on the touch screen.


    Technical Parameters:


    Mechanical Endurance Test Machine

    Test Station

    Single, can be customized

    Electrical Control Method

    PLC intelligent integrated control, with color humanized touch screen

    Drive Mode

    Servo motor drive

    Sample Clamping Method

    Mechanical clamping, clamping point position can be adjusted along the three axis fixture

    Linear Stroke

    0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)

    Conduction Time

    0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)

    Speed of Insertion and Separation

    0-0.85m/s can be preset,default(0.8±0.1)m/s

    Test Cycles

    0 ~ 999999 cycles can be preset (one trip is the insertion or withdrawal of the plug or vehicle connector and its matching accessories). A loop consists of two strokes, one for insertion and one for exit.

    Test Frequency

    0-10 cycles/min,can be preset(3.75cycles/min=7.5 stoke/min)

    Load Cabinet

    Channel

    1 Channel

    Digital voltmeter

    0~300V, accuracy ±0.5%

    Digital ammeter

    0~82A, accuracy ±0.5%

    Digital display power meter

    0~24KW, accuracy ±0.5%

    Digital display power factor meter

    0.2~0.999, accuracy ±0.5%

    Load mode

    Resistive, inductive, capacitive three in one, switchable

    Capacitive load

    70uf, 140uf, 7.3uf can be switchable

    Load output mode

    Each power (continuous) / interval power can be switchable

    Timer

    0~9999 times, can be preset

    Load power capacity

    Single 24KVA

    Upper limit of output current

    82A, when it exceeds 82a, it will cut off automatically

    General

    Test Contents

    Breaking Capacity Test of Electrical Coupler / Charging Interface

    Electrical coupler / charging interface normal service life test

    Detection Function

    An open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.

    Safety Protection

    Ground protection, short circuit protection
