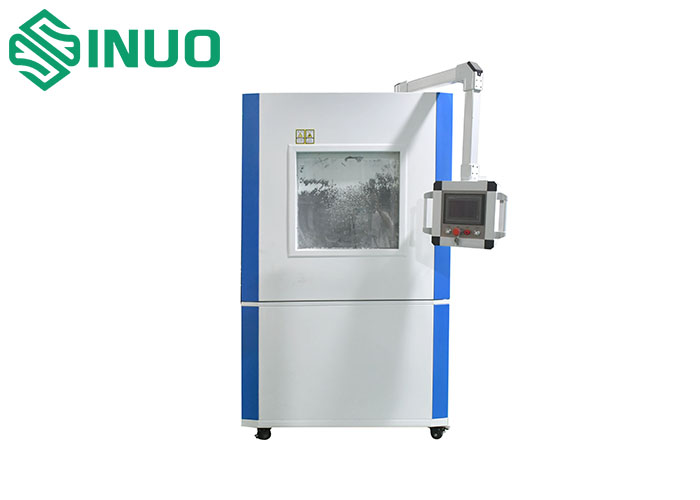

IEC 60335-1 IP5X/IP6X Sand And Dust Environmental Test Chamber 2000L For Test Electrical

Equipment Information For IP5X/IP6X Sand And Dust Environmental Test Chamber:

The P5X/6X Sand and Dust Test Chamber is a specialized testing equipment used to simulate sand and dust environments for evaluating the resistance of products to the ingress of solid particles. It is commonly utilized in industries such as automotive, aerospace, electronics, and military.

Here are some key features and specifications of the P5X/6X Sand and Dust Test Chamber:

1. Test Chamber Construction: The test chamber is typically constructed using stainless steel or other durable materials to withstand the abrasive nature of sand and dust particles. It is designed to prevent leakage and maintain a controlled testing environment.

2. Dust Generation System: The chamber is equipped with a dust generation system that utilizes compressed air or other methods to disperse and suspend dust particles within the test chamber. This system ensures a consistent and uniform distribution of particles during testing.

3. Particle Size and Concentration Control: The chamber allows for controlling the size and concentration of the particles according to the specific testing standards or requirements. It typically includes adjustable airflow regulators and particle feeding mechanisms to achieve the desired conditions.

4. Test Standards Compliance: The P5X/6X Sand and Dust Test Chamber is designed to comply with various international standards, such as ISO 20653, ISO 16750-5, MIL-STD-810G, and IEC 60529. These standards define the test procedures, particle size distribution, exposure durations, and acceptance criteria for sand and dust testing.

5. Temperature and Humidity Control: In some models, the test chamber may include temperature and humidity control capabilities to replicate the environmental conditions typically encountered in sand and dust environments. This allows for more comprehensive testing of product performance under realistic conditions.

6. Observation Window: The chamber is typically equipped with an observation window made of tempered glass or other transparent materials. It enables operators to visually monitor the test specimen during the test without compromising the integrity of the test environment.

7. Safety Features: The chamber incorporates safety features to protect operators and ensure safe operation. These may include safety interlocks, emergency stop buttons, overpressure relief mechanisms, and alarms for abnormal conditions.

8. Control System: The P5X/6X Sand and Dust Test Chamber usually includes a user-friendly control system that allows operators to set and monitor test parameters such as test duration, particle concentration, and airflow rates. It may also provide data logging and reporting functionalities.

The P5X/6X Sand and Dust Test Chamber is an essential tool for evaluating the durability and ingress protection capabilities of products exposed to sand and dust environments. By subjecting the products to controlled conditions, manufacturers can assess their resistance to particle intrusion and ensure their reliability in challenging operating environments.

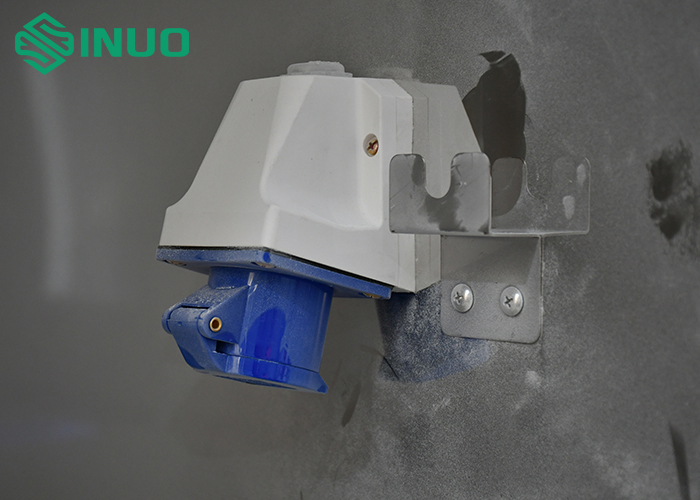

The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

Design a conical funnel with a dust collection port at the bottom, and install a high-pressure turbine circulation fan suction port at the dust extraction port (bottom). The dust that is pumped up is sent to the top of the inner box and is freely sprinkled from top to bottom through the top of the box, thus starting the cycle over and over again.

The sand and dust test chamber is designed and manufactured according to IEC60529 clause 13.4 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

Main Technical Parameters For IP5X/IP6X Sand And Dust Environmental Test Chamber:
