    IEC 60598-1 Threaded Connectors Torque Screwdriver 1.5-30N.M For Screwed Glands

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN994
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets Per Month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    IEC 60598-1 Threaded Connectors Torque Screwdriver 1.5-30N.M For Screwed Glands


    IEC 60598-1 Threaded Connectors Torque Screwdriver 1.5-30N.M For Screwed Glands


    Product overview:


    The threaded fitting tester according to IEC 60598-1:2014 4.12.5 is used to assess the fixing reliability of objects secured with metal and plastic threaded fittings, where neither the fitting nor its connecting parts can be damaged by applying a certain torque to the fitting according to the standard.


    Standards & Clauses:


    IEC 60598-1 “Luminaries-Part1: General requirements and tests” clause 4.12.5


    Application:


    Test the mechanical strength of the screwed glands


    Samples and Restrictions:


    Glands of screw thread ≦ M33


    Test Principle:

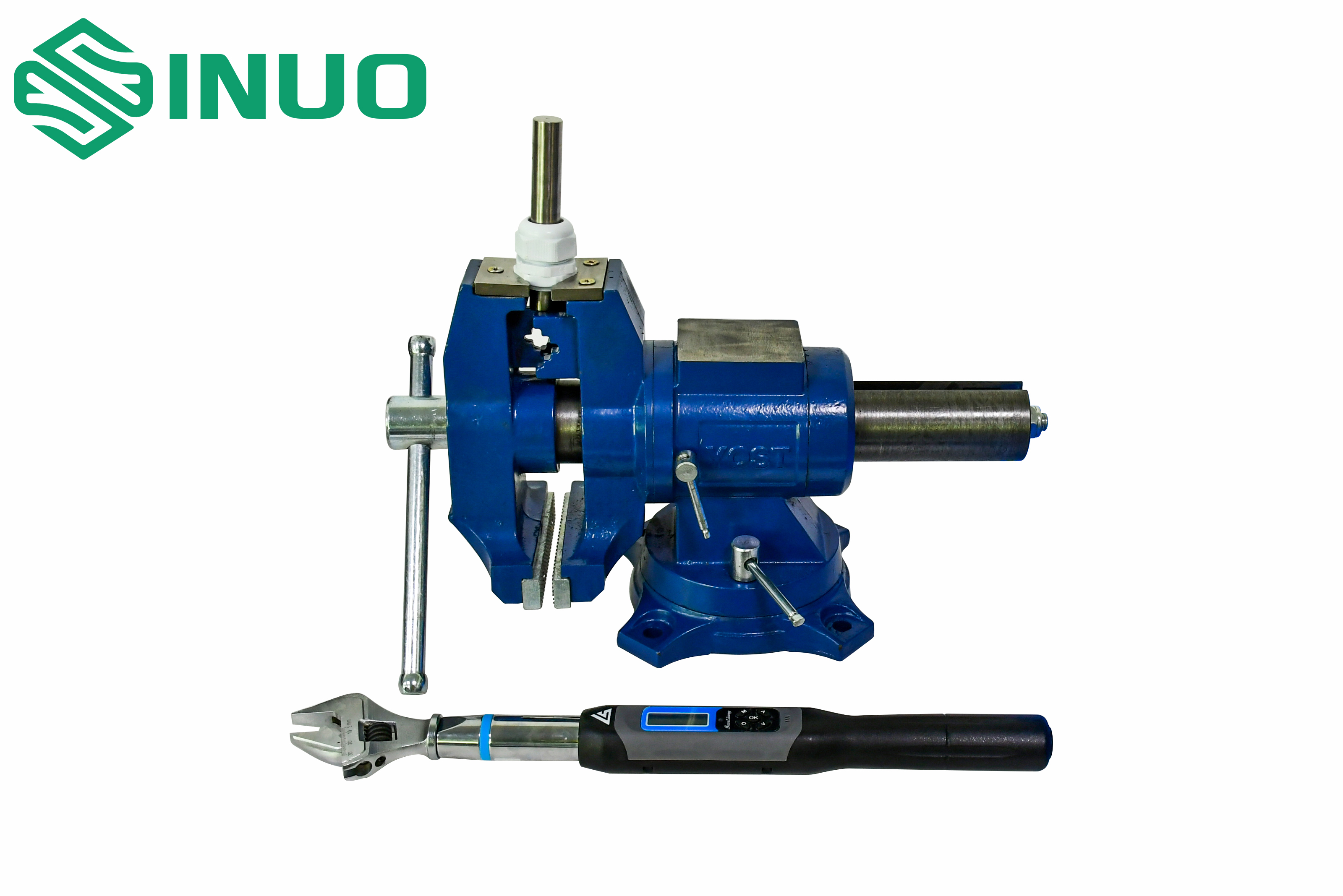

    The threaded gland is fitted with a cylindrical metal rod, which is held in place at one end, and then a spanner is used to apply the test torque at the other end.


    Structure:


    Manual testing, simple and convenient


    Technical Parameters:


    Applied torque range

    1.5-30N.m

    Way of applying torque

    Torque wrench

    Gland fixing method

    Vise or adjustable wrench

    Cylindrical metal rod

    One of each Ф5mm, Ф7mm, Ф9 mm, Ф10mm, Ф12 mm, Ф14mm, Ф16 mm, Ф18 mm, Ф20 mm, Ф22 mm, Ф25 mm, Ф30 mm, Ф32 mm, Ф40mm
